SMA母头转SMA母头电缆组件

SMA 穿墙式母头转SMA 穿墙式母头电缆组件，使用 RG316-DS同轴电缆

产品编号PE38184
SMA Female Bulkhead to SMA Female Bulkhead Cable Using RG316-DS Coax

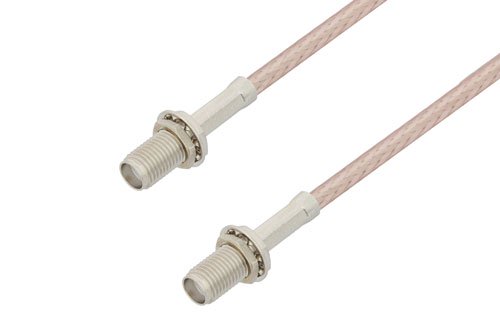

图片：  SMA Female Bulkhead to SMA Female Bulkhead Cable Using RG316-DS Coax high resolution
查看大图


点击这里PE38184数据
请输入长度来计算价格
标准长度
12 in.24 in.36 in.48 in.60 in.
长度定制
当天发货
长度：
*长度四舍五入到最近的英寸或厘米。为了获得精确的长度，请致电400 928 5100。
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector 1 SeriesSMA
Connector 1 GenderFemale
Connector 1 PolarityStandard
Connector Angle 1Straight
Connector Mount Method 1Bulkhead
Connector 1 Impedance50 Ohm
Connector 2 SeriesSMA
Connector 2 GenderFemale
Connector 2 PolarityStandard
Connector Angle 2Straight
Connector Mount Method 2Bulkhead
Connector 2 Impedance50 Ohm
Connector 1 Body MaterialBrass
Connector 1 Body PlatingNickel
RF Cable Part NumberRG316-DS
RF Cable TypeRG316-DS
RF Cable Impedance50 Ohm
Ingress Protection (IP) Rating
Length, Max


SMA Female Bulkhead to SMA Female Bulkhead Cable Using RG316-DS Coax

PE38184 is a SMA female bulkhead to SMA female bulkhead cable using RG316-DS coax. This Pasternack SMA female bulkhead to SMA female bulkhead cable assembly uses a 50 Ohm SMA for connector 1 and a 50 Ohm SMA for connector 2.

Our female SMA bulkhead to female SMA bulkhead cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE38184 SMA female bulkhead to SMA female bulkhead cable assembly is constructed with RG316-DS coax.
