Low PIM Connectors are Now Available from Pasternack Enterprisess

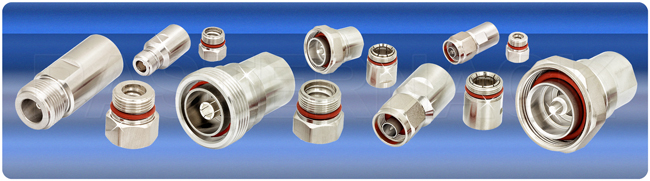

The new low passive intermodulation (PIM) connectors from Pasternack are designed for ease of installation in the field while providing outstanding electrical and mechanical performance. These connectors are ideal for installations where custom length coaxial cable jumpers are needed to provide low PIM levels and outstanding RF performance.
Our high performance low PIM connectors are designed to fit on most commercially available 1/2" corrugated copper and aluminum cables. Low PIM connectors are available in 7/16 DIN and Type N series with both male and female interfaces. Custom length assemblies using these new low PIM connectors are made to order and ship the same day.
Each high performance low PIM connector body is plated with a tri-metal Albaloy coating that produces a very durable surface with good corrosion protection while providing superior electrical conductivity and exceptional PIM performance. When properly installed, these connectors provide reliable PIM performance of ≤ -160 dBc and VSWR levels of ≤ 1.10 up to 3GHz. Pasternack's new lines of low PIM connectors are perfect for building custom assemblies using our low PIM coaxial cable jumpers.
