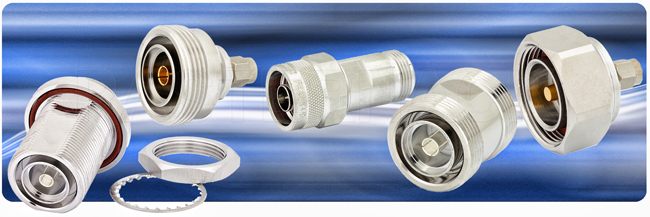

The new low passive intermodulation (PIM) adapters from Pasternack are perfect for applications requiring high performance at ultra low VSWR. Pasternack's new line of precision adapters are ideal for portable PIM testing, portable sweep testing, and applications such as installations in cellular/PCS, RF wireless infrastructure, OEM in-rack RF routing, in-building systems, and land mobile radio.
These new precision adapters provide very low PIM levels that are consistently less than -165 dBc with low VSWR levels up to 8GHz. Our precision low PIM adapters are fabricated with high machine tolerances providing an optimum electrical and mechanical interface. Each low PIM adapter body is plated with a tri-metal Albaloy coating that produces a very durable surface with good corrosion protection and abrasion resistance while providing superior electrical contact properties.
This new line of low PIM adapters from Pasternack are available in combinations of between-series 7/16 DIN and Type N while the in-series has various combinations of 7/16 DIN, Type N and SMA. Pasternack's new lines of low PIM adapters mate perfectly to our low PIM coaxial cable jumpers.
